1 Product Information
WPC flooring stands for Wood Plastic Composite. These 100% waterproof engineered luxury vinyl planks and tiles are DIY-friendly, featuring an effortless interlocking system that can be installed over most existing subfloors.

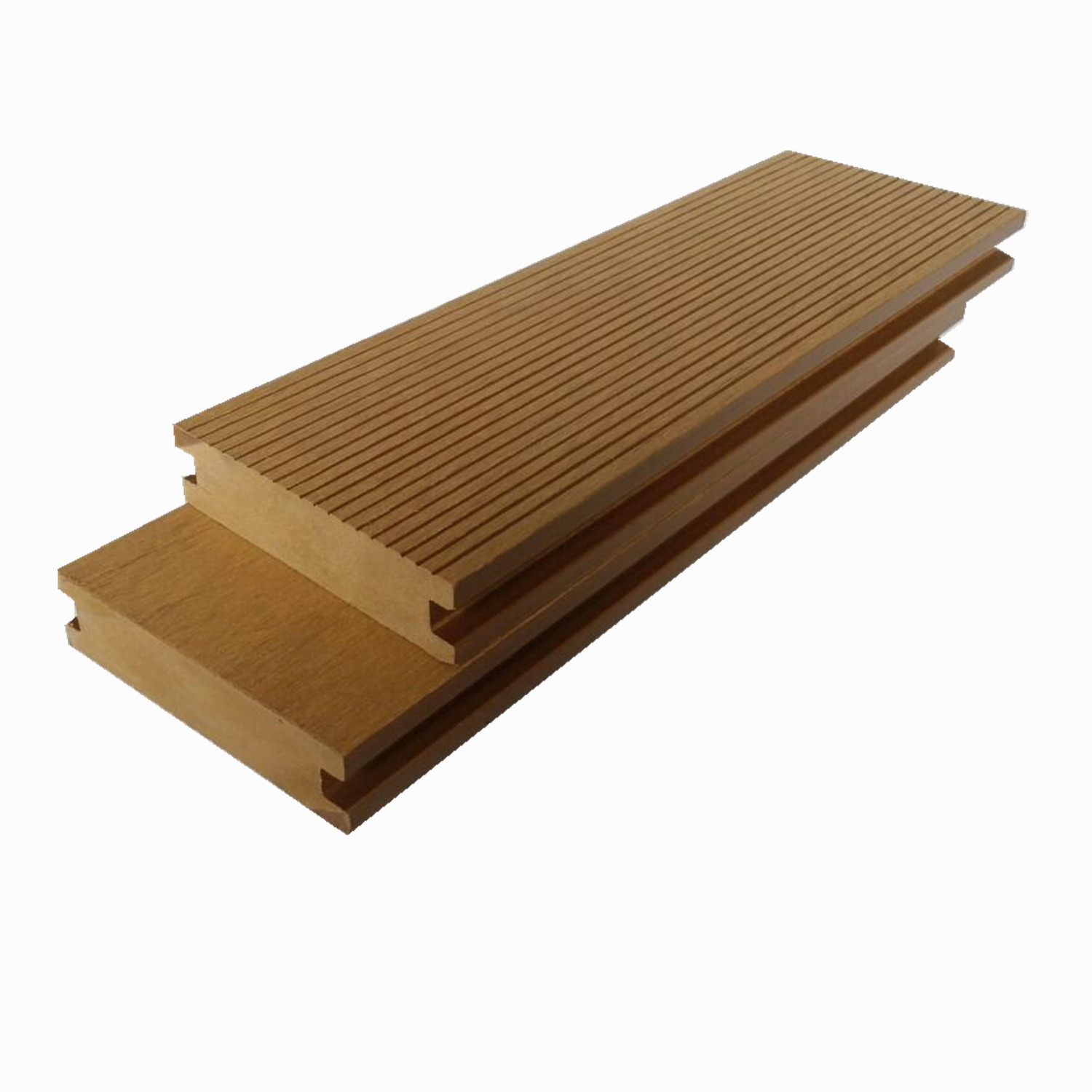

This type of WPC profile with two sides groove designing for slip resistance, can be used as floor board, be installed on the outdoor ground, trestle road and garden path, and perform outstanding superiority in the outdoor decking of courtyard, park, garden community, waterscape, seashore path or gazebo, trestle and plank road, dock, etc
|60%-65% natural wood fiber
|30%-35% of eco-friendly HDPE materials
|5% -10% Chemical additivel
|100x25mm , 135x25mm,138x24mm,140x20mm ,140x25mm ,146x22mm ,150x25mm,150x30mm,ect.
|Hollow / Solid
|2.2m 3m/pc standard length, also from your required
|Groove , Woodgrain, Flat, Embossing
Copper Brown, Light Brown, Black, Cedar, Coffee,Dark Grey,
Silver Grey, Yellow, Red and Wood,etc.( we can adjust the new color according to the order requirement)
|Carton Pallet with PVC soft flim
4 How to Install
Installation :Wood plastic material in the current life is more and more used, become the best material to replace the anti-corrosion wood, so how should the wood plastic floor be installed?The main accessories for installing wood plastic decking include wood plastic keel or square steel keel, floor Clips(divided into plastic floor clip and stainless steel floor clip), screws, etc.
Preparation before Installation, Ensure that the concrete floor of the construction site is flat. This is very important.The wood-plastic keel is fixed directly on the ground with an expansion screw.,Space between plastic expansion screws is 500mm~600mm.
Use electric drill lead a hole on the keel, the lead hole diameter should not be less than the diameter of the screw, and then put the screw into the drilled hole, the keel on the cement ground, the nail head should be all turned into the keel, do not expose, otherwise may lead to uneven floor layout.Here the installation of the keel is only as a reference, in fact some keels can be fixed by stainless steel fasteners.
The left and right sides of each wood plastic decking has grooves. When paving the first deck floor, cut one side grooves of the first floor, Then lead holes on the surface of the floor, and fix it to the keel,or you can aslo use ss start clip to install the first WPC board.The second plate is then connected by plastic or metal fasteners, which clips are sandwiched between the two plates and hit into the keel by the screws.Attach the spacer clip to the other side of the WPC decking board then fix the spacer clip with a screw down to the keel.Then slip next WPC decking board firmly up to the spacer clip.Any piece in the middle should be supported over the keel or battens.
There are important measurements to keep in mind when installing composite decking, and those are the spacings. Composite decking boards are able to expand and contract with the weather, so it is important for you to take note of and act on the correct spacing allowances when installing your composite decking to avoid damage.
Due to the thermal expansion and cold contraction of the wood-plastic floor, a gap of about 5mm needs to be left at the connection between the two plates.
1. What's WPC?
WPC is short for Wood Plastic Composite. The combination of the raw materials are mostly 35% recycled plastic (HDPE) and 55% wood powder, plus 10% additives such as anti-UV agent, lubricant, light stabilizer and etc.
2. What's the process to make WPC decking tile?
(a) Mix raw materials according to certain formula, then make them into pellets.
(b) By extrusion machine and mold, shape the products in customized profile and size.
(c) Do surface treatment such as sanding or embossing, then cut the WPC decking by requested length.
(d) Assemble the decking boards with the plastic base with screws, then do cleaning before packing.
3. What's the benefits to use composite decking tile?
(a) Composite decking tile is waterproof, fire retardant, UV resistant, anti-slip, maintenance free and durable.
(b) Its designs, colors, surface treatments are adjustable.
(c) It's easy to install and cost efficient.
(d) Since the raw materials are recycled, the product itself is eco-friendly.
7. The Related Product
About our Company
Our company Jiaxing Hyde Co.,Ltd,We are professional manufacturer and exporter of PVC decoration material from China .
Our Products widely use for household and commercial building's interior decoration ,
With three Mainly Series : pvc Ceiling / pvc Wall Panels / SPC Flooring,WPC decking floor ,WPC interior wall board with cover almost all the area decoration need .
We have over 200 kinds of panel mould with over 3000 color styles in our workshop ,so we can supply the panel by different width &Thickness&Length &Color styles&Strength as order request.
With waterproof ,Termite proof,Fire retardant,Maintenance Free,Easy Installation ,Economical,Durability,Anti-fungal Properties,Excellent Weather-ability ,Fashionable color styles and panel designs so many advantages , our products be welcome by different market with their different decoration purpose.
Hyde company with advanced management mode,product advantage and high quality talent team to build the core competitive advantage,will be further integration of resources products ,more comprehensive output of professional products,intensive professional channels,is committed to became the leading enterprises in decoration material industry.
10.Advantage of our company :
1.Experience manufacturer over 20 Years.
2.Cover almost market panel making mold and color styles
Length can make as standard 2.8m or customization
3.Accept OEM/ODM Service,You can easy build your own brand with our high quality products.
4.Accept Product customization,but we recommend that you have a certain order quantity,otherwise the cost of the mold will be higher.
5.Accept Color Customization
6.Free Sample (Sample will be cut by small piece with size not use for installation , only for check quality.welcome contact us if you need sample .)
7.24 Hrs Online Service
8.Comprehensive products coverage,including pvc ceiling/pvc wall panel/matching accessories/SPC floor,etc.Customers can purchase in our company together,saving logistics costs and time.
9.More information you may want to know :
Q: Can you manufacture products according to sample ?
A: Yes, We can produce by your sample or technical drawing.
We have R&D team, we can also help to develop new molds and texture.
Q: What is your payment term ?
A: 30% deposit in advance, 70% before loading .
We will show you photos and packages before you pay the balance.
Q: What is your delivery time ?
A: Generally, around 10-14 days after confirmation of your deposit payment.
Specific time depends on order items and order quantity.
Q: How can I get the after service ?
A: We welcome your chats online (Chat or leave message: After service) or e-mail to us regarding any technical or related
questions that you may have.
Q: What is your term of delivery?
A:We accept EXW, FOB, CIF, etc. Choose the one which is the most convenient or cost effective for you.
Due to the cost movement and thickness /width/weight /color treatment of different mould ,please contact us to get the exactly quotation brefore order start .Welcome contact us for more products information .
