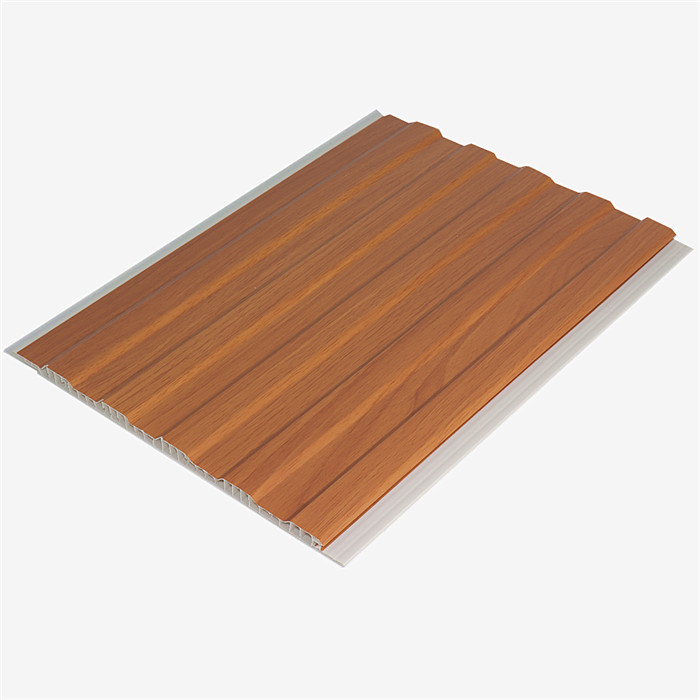

250mmX8mm pvc wall designing

  • 5 groove laminated corrugated plastic roofing sheets pvc wall designing
  • 5 groove laminated corrugated plastic roofing sheets pvc wall designing
5 groove laminated corrugated plastic roofing sheets pvc wall designing5 groove laminated corrugated plastic roofing sheets pvc wall designing

5 groove laminated corrugated plastic roofing sheets pvc wall designing

  • Model:HD-201
  • Material: PVC +Calcuim Carbonate
  • Size :200X8X5950
  • Loading Qty:1x20 FT3300 SQM; 40 HC 8000 SQM
  • Description: 5 groove wood color laminated panel Loading Port : Shanghai Port Package : 10 pieces /Package Length:2440mm/2900mm/3000m/3950mm/5800mm/5950mm Color Treatment :Laminated
  • INQUIRY   EMAIL


Basic Mould Information :

Main Material PVC  and Calcium Carbonate Mix
Width 200mm/250mm
Thickness 8mm
Length Max 5950mm ( 2900mm/3000mm/3950mm/5800mm Optional)
Surface  Color Treatment laminated
Quality Standard  (PVC %) 40%;45%;50%;60%;70%
Weight of Mould 2.8KG/Square meter
Package qty 10 Pieces /Package ( PE package &  Carton )
HS Code 3925900000

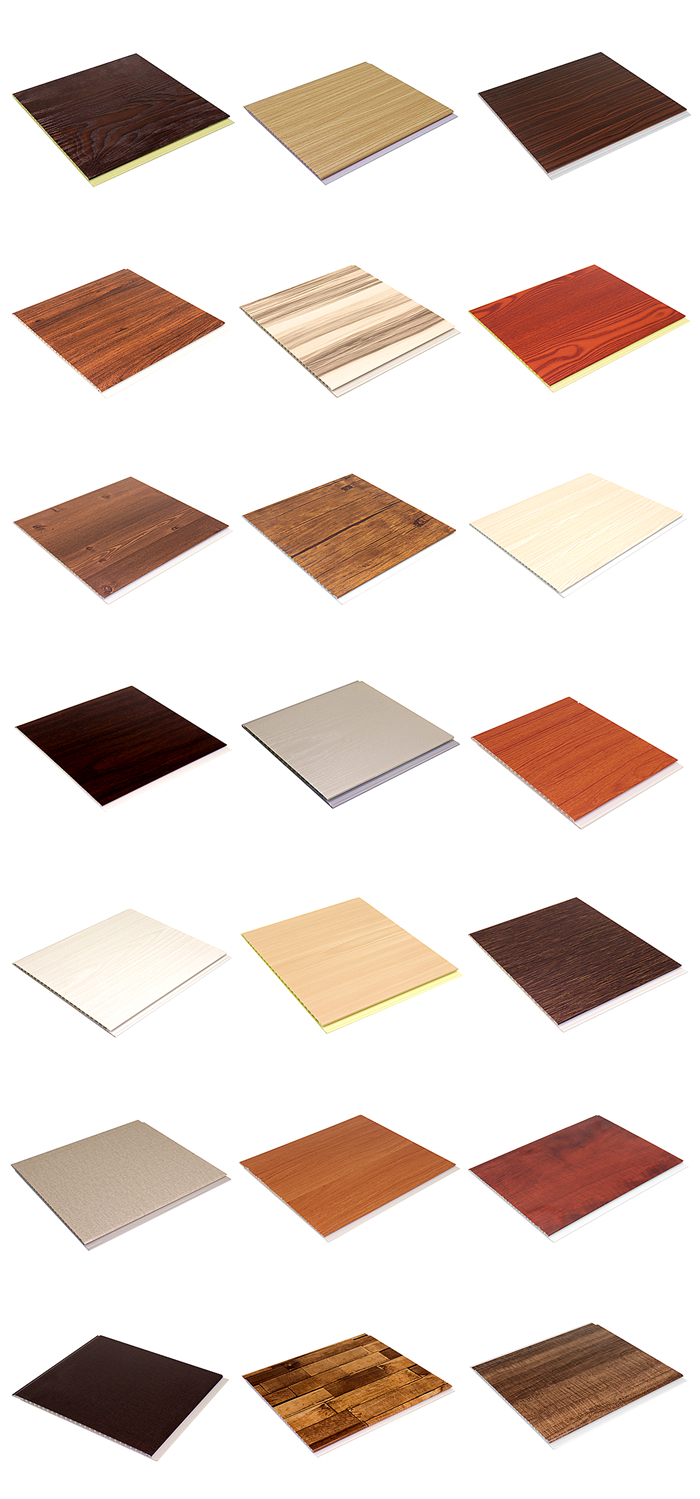

And we can supply different color styles on surface like wooden color /marble color /wallpaper color series from light to dark ,

from simple to Luxury ,from classic to fashionable with over 2000 kinds color designs.

Features of Our product

1 Waterproof, rotproof, rustproof, heatproof,Mtyostureproof,corrosion resistant,No flammable,No-Leakage,No easy to aging,Safty and reliablity material

2 Easy to install and clean3

3 Easily assembly, surface even, without gap when concatenated.

4 High intensity, corrode-resisting, aging-resisting, can be used more than 30 years.

5 Widely used for indoor or building decoration

6 Prevent fire, antibiotic, healthy and environmental

7 Laminated surface picture is clear and adhesive.
8 Light in weight
9 Economical
10 Simple installation
11 Easy to clean and maintain
12 Anti bacterial  Mould and fungus cannot grow on our products
13 Water resistant  Can be subject to direct contact with water
14 Good sound and heat insulating properties Can reduce energy costs
15 Easy to repair Damaged panels can be replaced easily
16 No grouting required
17 Different designs available to suit all décor
18 Painting is not required
19 Safe and clean No harmful dust and waste created, hence you do not need to clear everything out during renovation
20 Easy to work on No expensive tools required
21 Hard wearing    Our products can still look like new after years of usage



Fix the wooden structures onto the ceiling as below to build the frame before installation the pvc panel (Recommended space between each horizontal wooden battens around 50cm(Aluminum keel also ok )

1.Measure the size of the installation space;

2.3Cut suitable size for U clips /top clips ,install on by screws .

4.5.6.Cut the first pvc ceiling panel's siding soft tongue, make it close and insert to the clip,with screws on pvc ceiling panel and wood keel with 50cm distance .

7.8.9 same steps to put on screws and insert the pvc ceiling panel .

10.11.12. Make the hole on pvc ceiling panel as need to install the light .

PVC Accessories:


More Mould Information :

Width X Thickness (mm) PVC Content Length Weight
100x9mm

40%;45%

;50%;60%;70%

2.44m;2.75m;2.95m

;3.05m;5.8m;5.95m

3.4kg/m2
160x8mm 3kg/m2

200x5mm;

200x6mm;

200x7mm;

200x7.5mm;

200x8mm;

200x9mm;

200x10mm;

200x11mm;

200x12mm;

200x20mm

1.9kg-5kg/m2

250x5mm;

250x6mm;

250x7mm;

250x7.5mm;

250x8mm;

250x9mm;

250x9.5mm;

250x10mm

1.9kg-5kg/m2

300x6mm;

300x7mm;

300x8mm;

300x9mm;

300x10mm;

300x11mm;

300x12mm

1.9kg-5kg/m2

400x7mm;

400x8mm;

400x9mm

2.8kg-7kg/m2

595x595mm;

600x600mm;

603x603mm

2.2kg-2.4kg /m2





Decoration :



Production &Loading





Q&A :

1.What's your products ?
Our products have it’s Generic name “PVC PANEL “It’s use for interior wall and ceiling decoration. They are made of PVC and Calcuim carbonate. They are specially make by hard PVC extrusion methods and active additives to improve the key properties of the product, such as impact resistance and durability,flexibility and environmental resistance.
2.Why this products so popular with different kinds of market ?
It is the material, as an alternative material to wood and wallpaper with low cost and long service time, effectively reducing the deforestation of forests and protecting our environment. At the same time, you can choose the pattern that matches your decoration style. Our surface pattern processing technology is very good, and there are thousands of different styles to meet your different needs.
3.How can I take an order ?
We encourage trial orders for new customer and new market .Customer can start with 1x20 GP small container with around 300m2 -4000m2 panel first to check our quality and market ,And our convention order will be start as 1 x40 Container with 8000-9000m2 panels can fill in the container and 8 colors max you can take .
4.What’s the Payment term and how long time you can finish the order ?
Our payment term : 30% as pre-payment to start the order , left 70% before loading
And with 14-20 days production time after the order confirm and pre-payment done .
5.Color style and panel styles ?
We have cover all the panel styles from market, and also we can make the new mould to follow customer’s request .
About the surface color , we have 4 mainly color treatment way : Printing +normal glossy ,high glossy ,hot stamping ,Laminating ,we have more than thousands color styles for you choose ,Please contact our sales team for details informations.
