200mmX5/6/7/8/9/10/11/12mm pvc ceiling panels

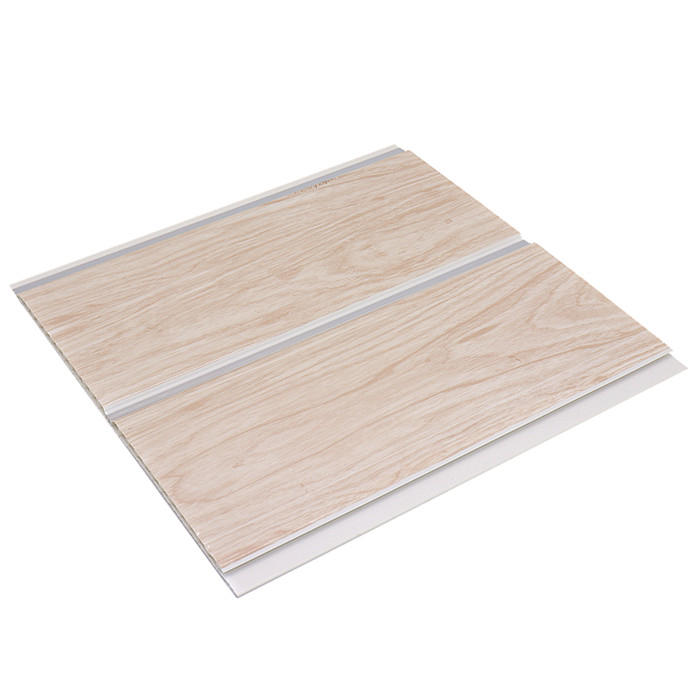

  • H203  Printing color grey wood  200mm x8mm Middle groove panel
  • H203  Printing color grey wood  200mm x8mm Middle groove panel
H203  Printing color grey wood  200mm x8mm Middle groove panel H203  Printing color grey wood  200mm x8mm Middle groove panel

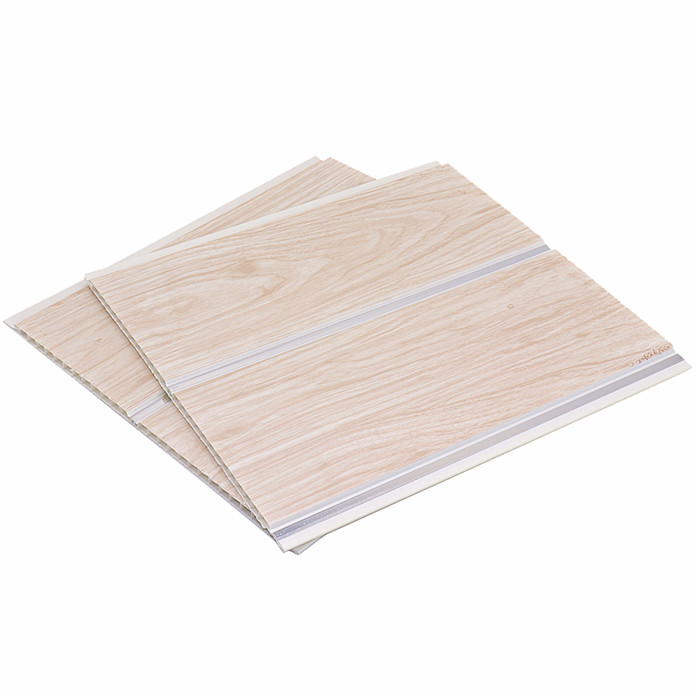

H203 Printing color grey wood 200mm x8mm Middle groove panel

  • Model:H203
  • Material: PVC +Calcuim Carbonate
  • Size :200X8X5950
  • Loading Qty:1x20 FT 3300 SQM; 40 HC 8000 SQM
  • Description: Width 200mm Thickness 8mm Mould Weight : 2.5kg/square meter Loading Port : Shanghai Port Package : 10 pieces /Package Length:2440mm/2900mm/3000m/3950mm/5800mm/5950mm Color Treatment : printing
  • INQUIRY   EMAIL


Basic Mould Information :

Main Material PVC  and Calcium Carbonate Mix
Width 200mm
Thickness 8mm
Length Max 5950mm ( 2900mm/3000mm/3950mm/5800mm Optional)
Surface  Color Treatment White Color ; Simple Printing ;Hot stamping ; laminated ; Glossy Printing ;Matt Surface ;
Quality Standard  (PVC %) 40%;45%;50%;60%;70%
Weight of Mould 2.5KG/Square meter
Package qty 10 Pieces /Package ( PE package &  Carton )
HS Code 3925900000

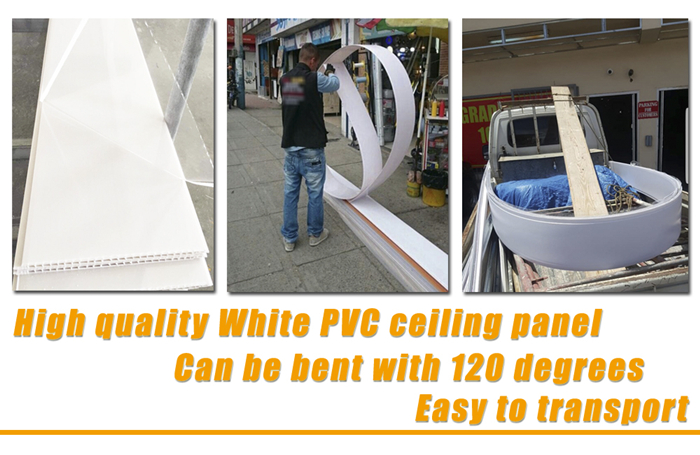

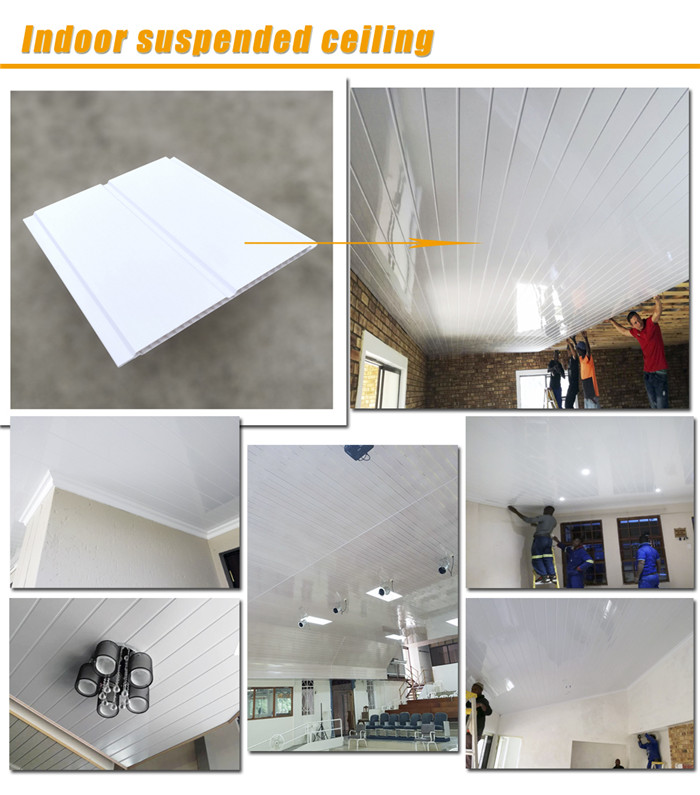

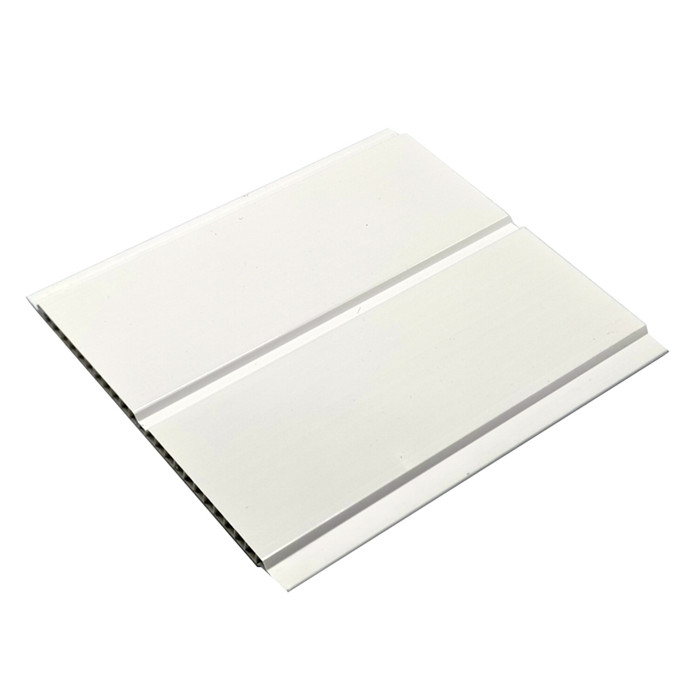

White color is the basically color styles hot sale for every market , it's simple and clean ,suitable for almost all decoration scenes .When you headache with the color selection, white color is your best choice .

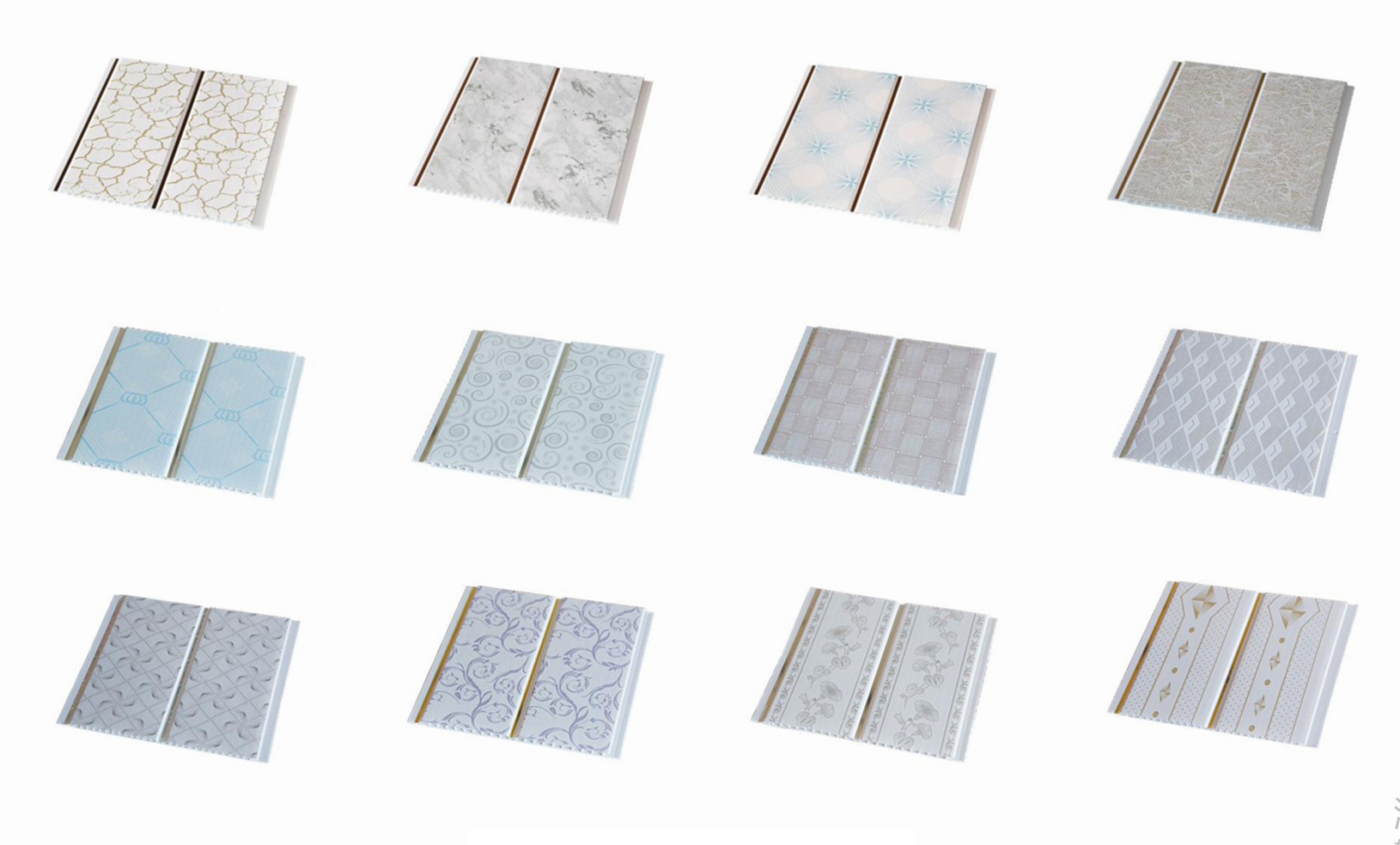

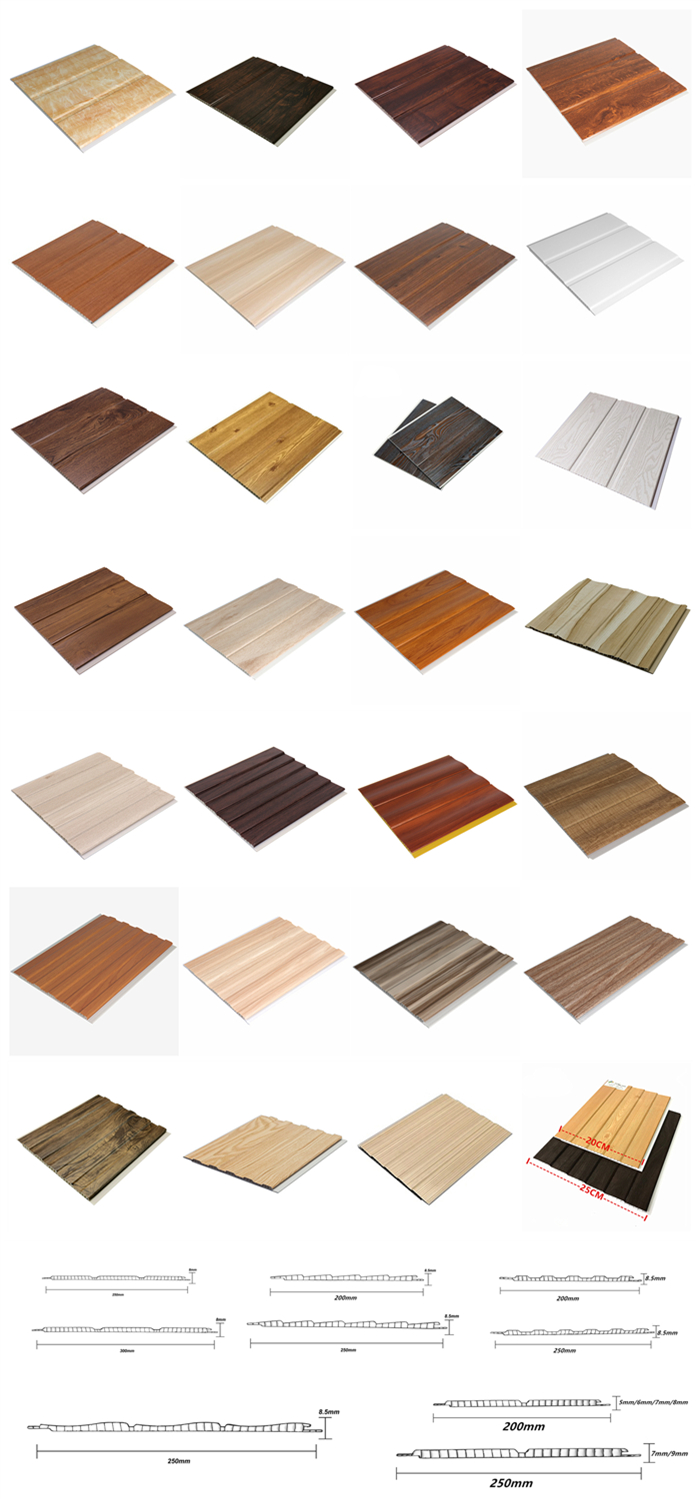

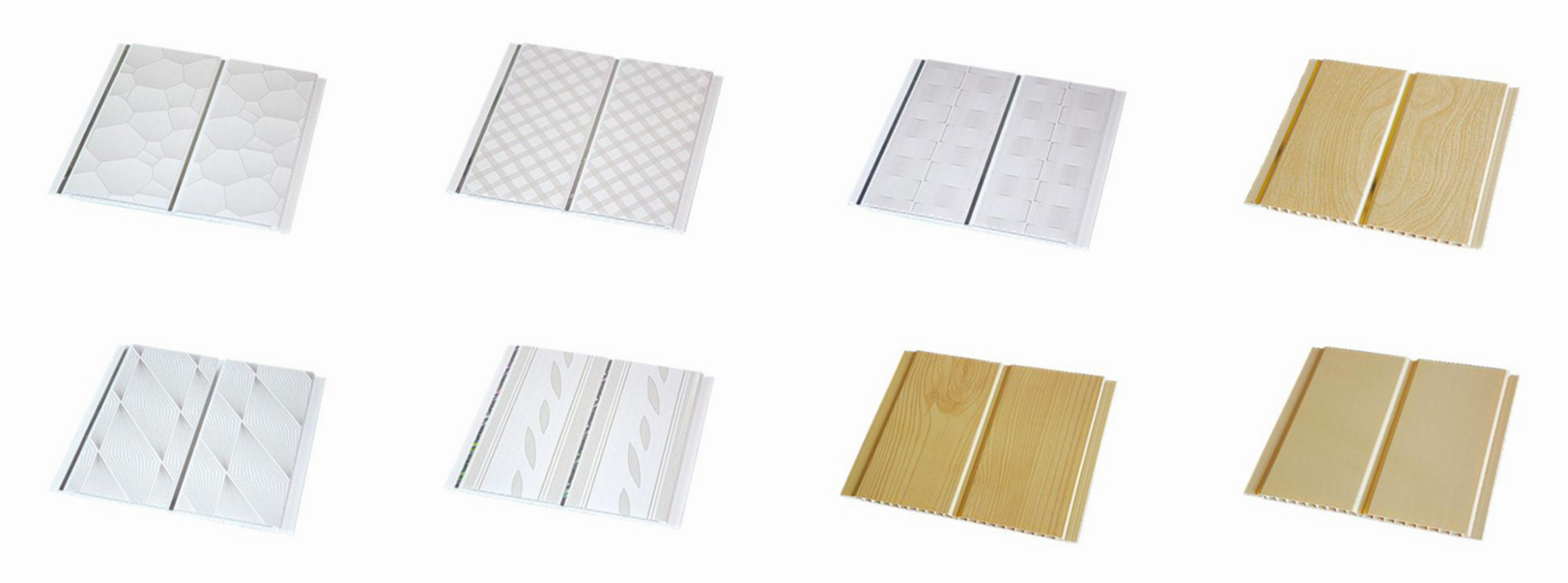

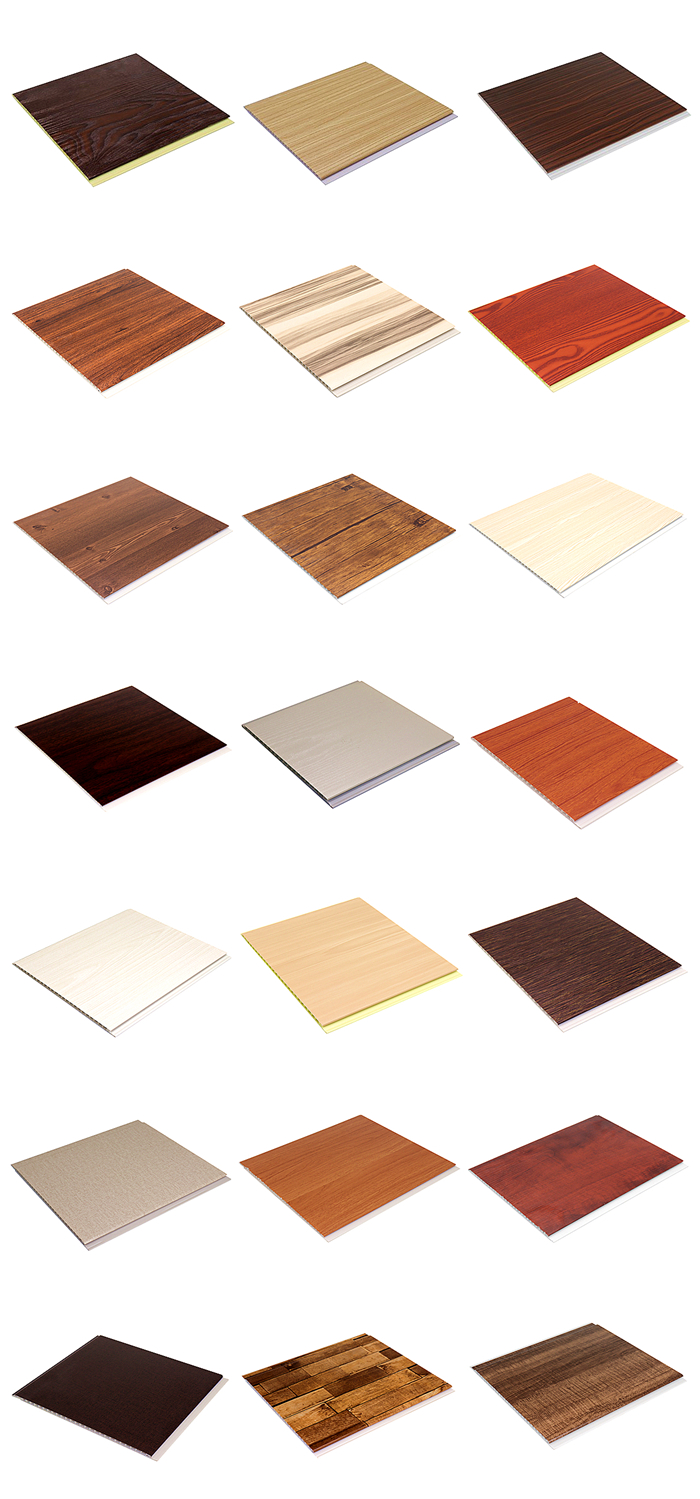

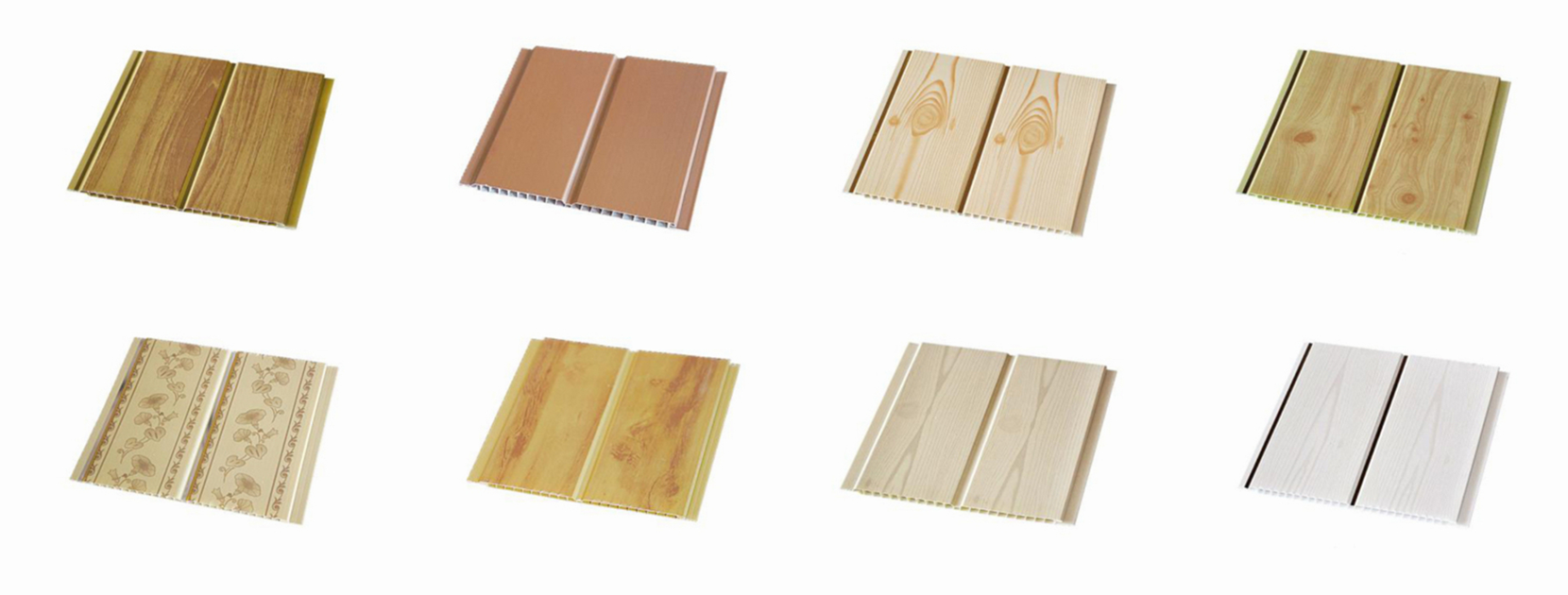

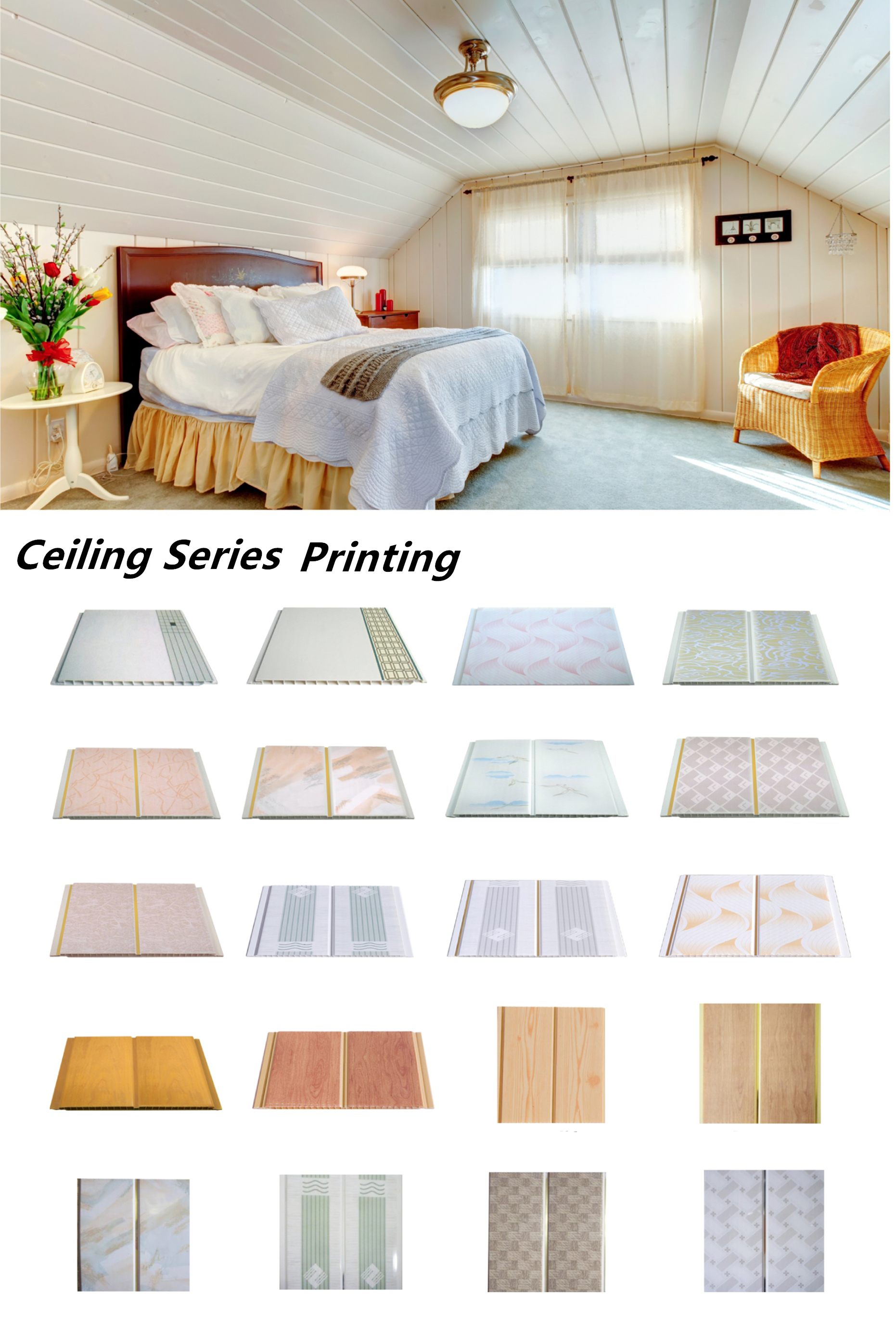

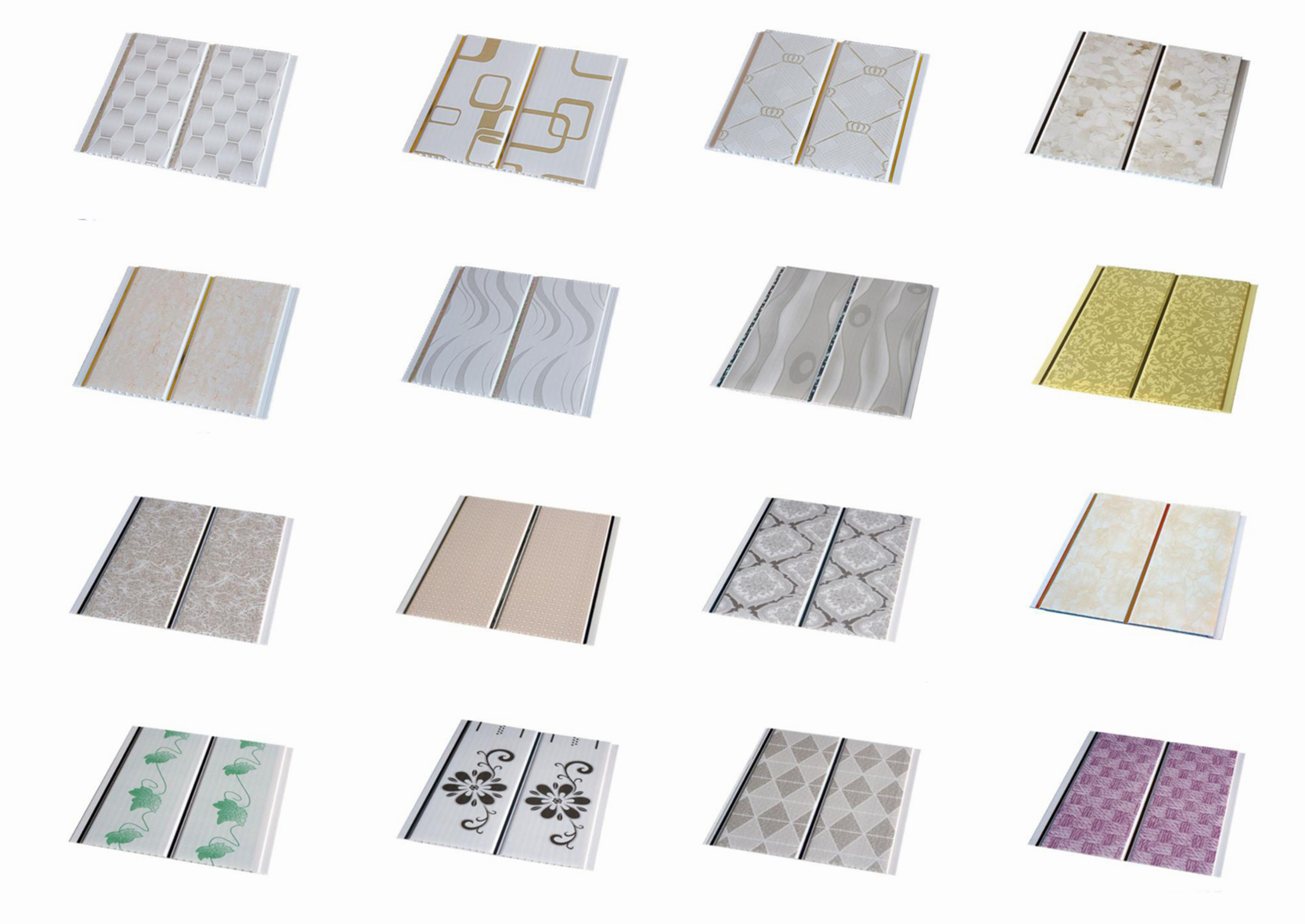

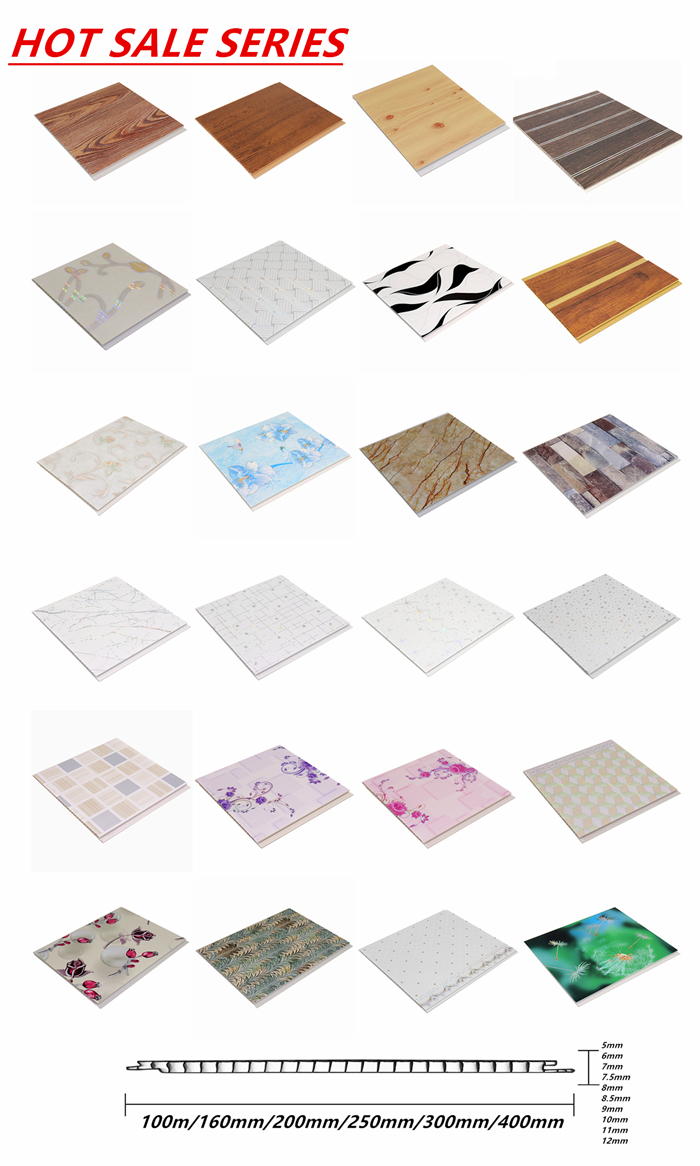

And we also supply different color styles on surface like wooden color /marble color /wallpaper color series from light to dark ,from simple to Luxury ,from classic to fashionable with over 2000 kinds color designs.




Fix the wooden structures onto the ceiling as below to build the frame before installation the pvc panel (Recommended space between each horizontal wooden battens around 50cm(Aluminum keel also ok )

1.Measure the size of the installation space;

2.3Cut suitable size for U clips /top clips ,install on by screws .

4.5.6.Cut the first pvc ceiling panel's siding soft tongue, make it close and insert to the clip,with screws on pvc ceiling panel and wood keel with 50cm distance .

7.8.9 same steps to put on screws and insert the pvc ceiling panel .

10.11.12. Make the hole on pvc ceiling panel as need to install the light .

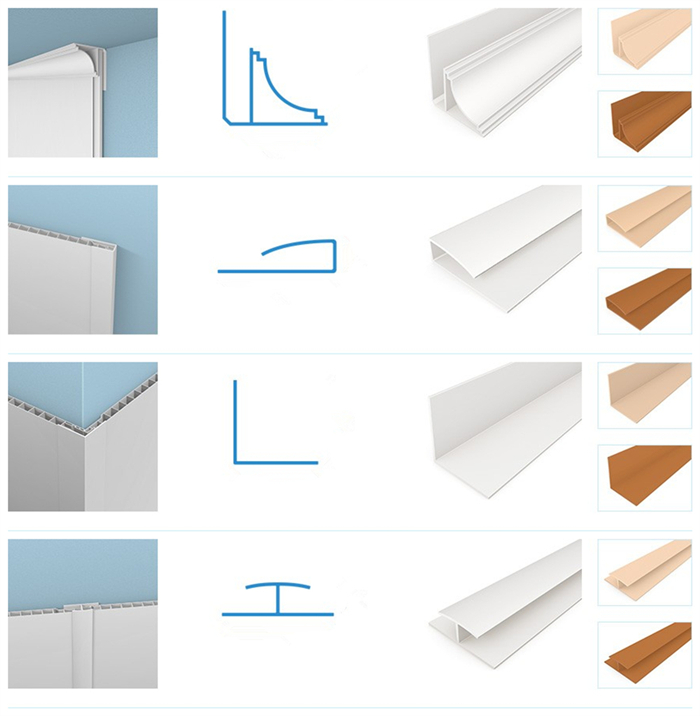

PVC Accessories:


More Mould Information :

Width X Thickness (mm) PVC Content Length Weight
100x9mm

40%;45%

;50%;60%;70%

2.44m;2.75m;2.95m

;3.05m;5.8m;5.95m

3.4kg/m2
160x8mm 3kg/m2

200x5mm;

200x6mm;

200x7mm;

200x7.5mm;

200x8mm;

200x9mm;

200x10mm;

200x11mm;

200x12mm;

200x20mm

1.9kg-5kg/m2

250x5mm;

250x6mm;

250x7mm;

250x7.5mm;

250x8mm;

250x9mm;

250x9.5mm;

250x10mm

1.9kg-5kg/m2

300x6mm;

300x7mm;

300x8mm;

300x9mm;

300x10mm;

300x11mm;

300x12mm

1.9kg-5kg/m2

400x7mm;

400x8mm;

400x9mm

2.8kg-7kg/m2

595x595mm;

600x600mm;603x603mm

2.2kg-2.4kg /m2

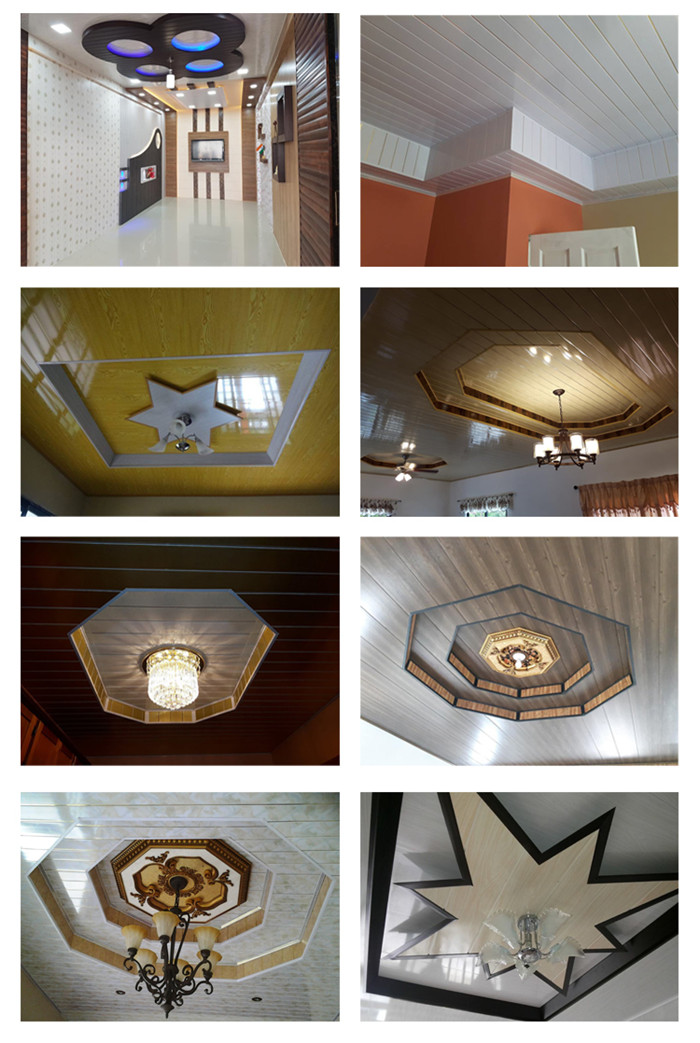

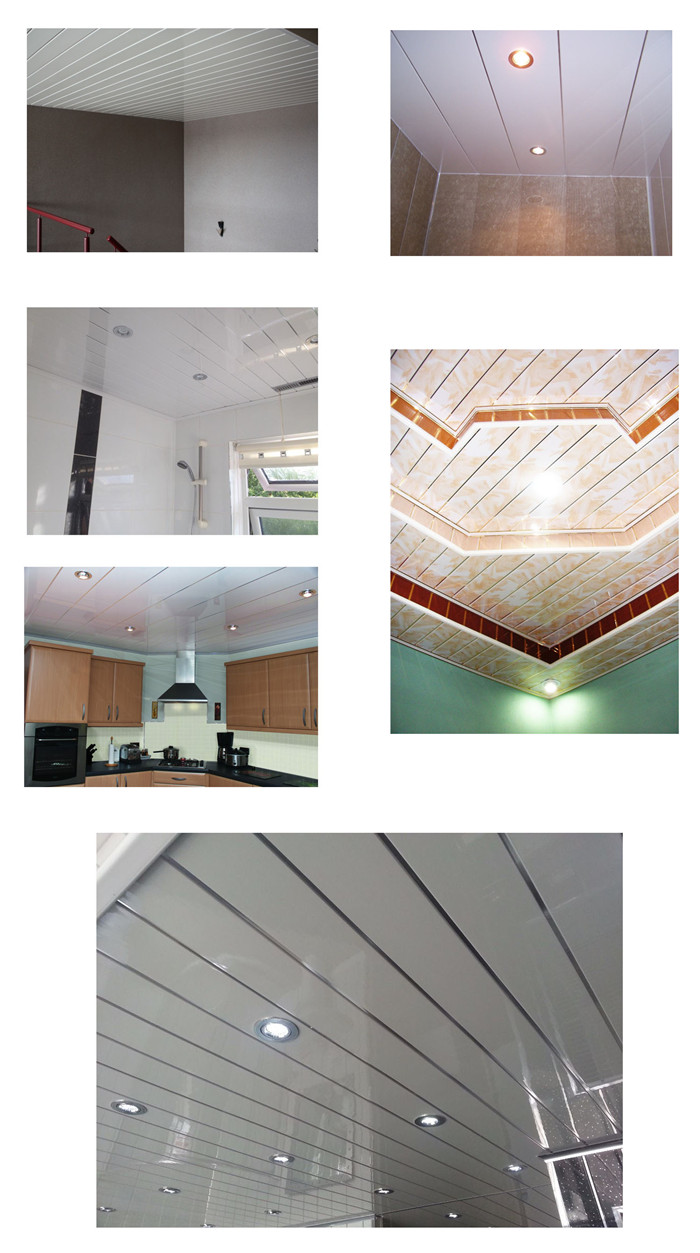

Decoration :

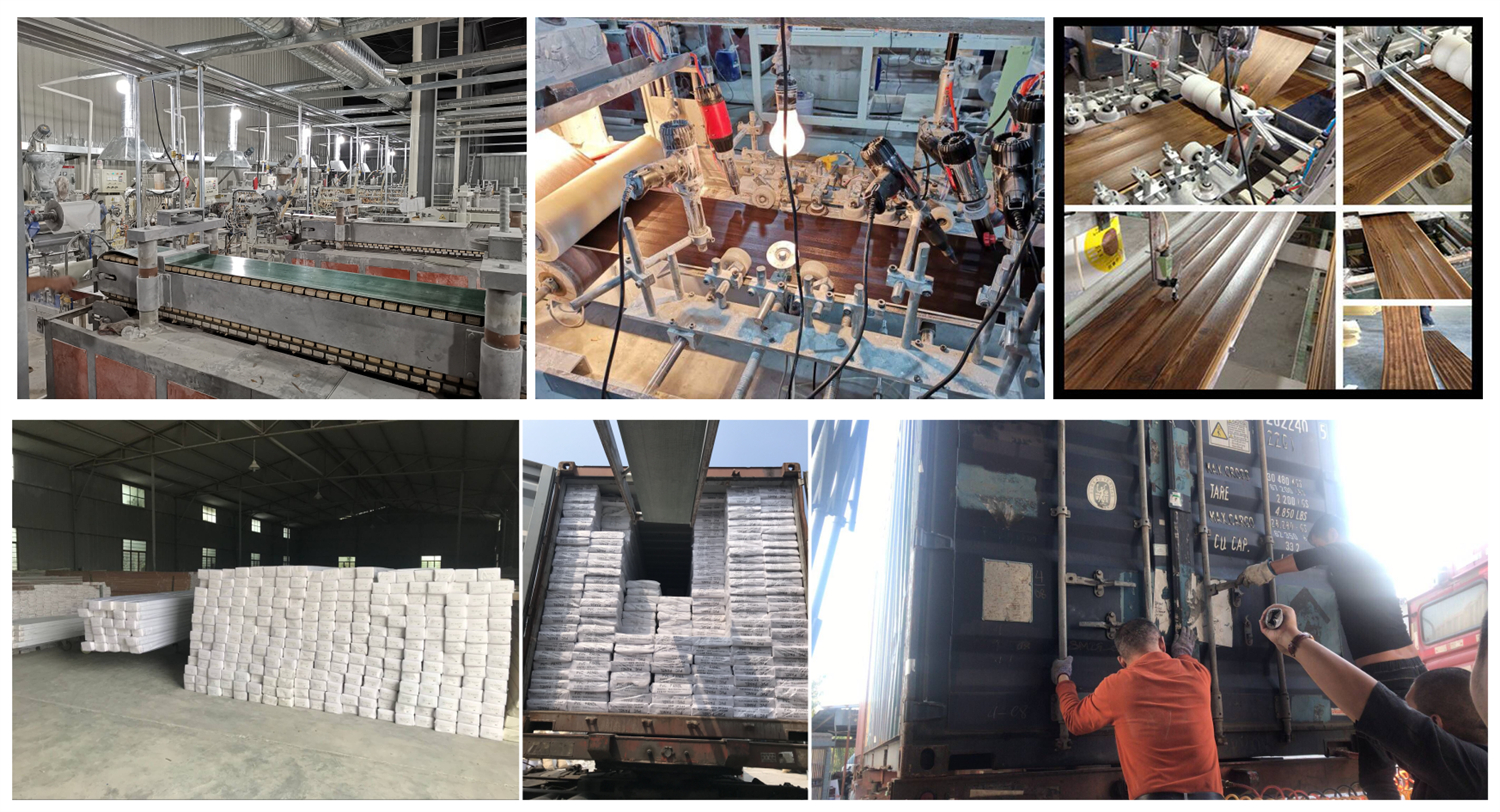

Production  & Loading

Relative Products we supply :



Inquiry:
