Basic Mould Information :
| Main Material | PVC and Calcium Carbonate Mix |

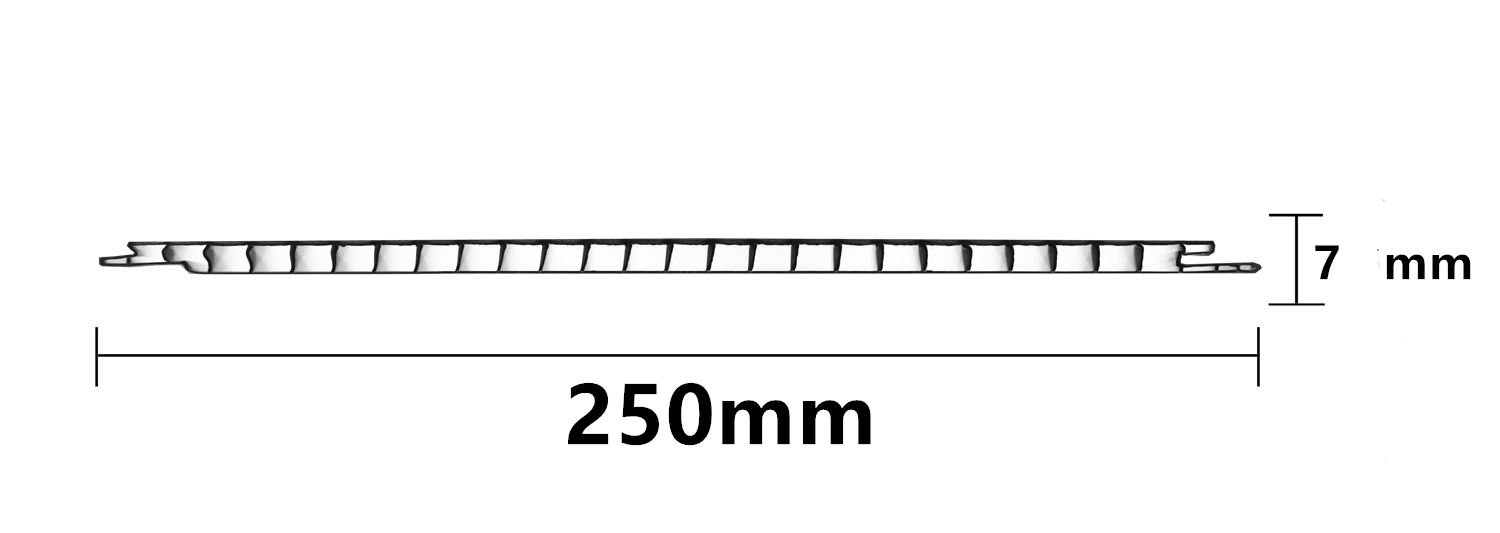

| Width | 250mm |
| Thickness | 7mm |
| Length | max can make 5800mm/5950mm ( or 2900mm/3000mm/3950mm/5800mm as optional) |
| Color Treatment | White Color /Printing /Hot stamping /Laminating color treatment |
| Quality Range (pvc content) | 40%;45%;50%;60%;70%;80% |
| Weight of Mould | 2.2 kg/ square meter ; 2.4kg/square meter; |
| Package Details | 10 pieces /package ; PE Package ;Carton Package; |
| Loading Data | 1x20 ft can loading 3700-3800 square meters ; 1x40 ft Can loading 9300 square meters; |
| H.S Code | 392590 |
| Loading Port | Shanghai Port ,China |
| Order Production time | 14-20 days as ordinary after 30%pre-payment ,left 70% before loading |
White color is the basically color styles hot sale for every market , it's simple and clean ,suitable for almost all decoration scenes .When you headache with the color selection, white color is your best choice .
And we also supply different color styles on surface like wooden color /marble color /wallpaper color series from light to dark ,from simple to Luxury ,from classic to fashionable with over 2000 kinds color designs.
1 Waterproof, rotproof, rustproof, heatproof,Mtyostureproof,corrosion resistant,No flammable,No-Leakage,No easy to aging,Safty and reliablity material
2 Easy to install and clean3
3 Easily assembly, surface even, without gap when concatenated.
4 High intensity, corrode-resisting, aging-resisting, can be used more than 30 years.
5 Widely used for indoor or building decoration
6 Prevent fire, antibiotic, healthy and environmental
7 Laminated surface picture is clear and adhesive.
8 Light in weight
9 Economical
10 Simple installation
11 Easy to clean and maintain
12 Anti bacterial Mould and fungus cannot grow on our products
13 Water resistant Can be subject to direct contact with water
14 Good sound and heat insulating properties Can reduce energy costs
15 Easy to repair Damaged panels can be replaced easily
16 No grouting required
17 Different designs available to suit all décor
18 Painting is not required
19 Safe and clean No harmful dust and waste created, hence you do not need to clear everything out during renovation
20 Easy to work on No expensive tools required
21 Hard wearing Our products can still look like new after years of usage
Fix the wooden structures onto the ceiling as below to build the frame before installation the pvc panel (Recommended space between each horizontal wooden battens around 50cm(Aluminum keel also ok )
1.Measure the size of the installation space;
2.3Cut suitable size for U clips /top clips ,install on by screws .
4.5.6.Cut the first pvc ceiling panel's siding soft tongue, make it close and insert to the clip,with screws on pvc ceiling panel and wood keel with 50cm distance .
7.8.9 same steps to put on screws and insert the pvc ceiling panel .
10.11.12. Make the hole on pvc ceiling panel as need to install the light .
PVC Accessories:
More Mould Information :
| Width X Thickness (mm) | PVC Content | Length | Weight |
| 100x9mm | 40%;45% ;50%;60%;70% | 2.44m;2.75m;2.95m ;3.05m;5.8m;5.95m | 3.4kg/m2 |
| 160x8mm | 3kg/m2 | ||
| 200x5mm; 200x6mm; 200x7mm; 200x7.5mm; 200x8mm; 200x9mm; 200x10mm; 200x11mm; 200x12mm; 200x20mm | 1.9kg-5kg/m2 | ||
| 250x5mm; 250x6mm; 250x7mm; 250x7.5mm; 250x8mm; 250x9mm; 250x9.5mm; 250x10mm | 1.9kg-5kg/m2 | ||
| 300x6mm; 300x7mm; 300x8mm; 300x9mm; 300x10mm; 300x11mm; 300x12mm | 1.9kg-5kg/m2 | ||
| 400x7mm; 400x8mm; 400x9mm | 2.8kg-7kg/m2 | ||
| 595x595mm; 600x600mm;603x603mm | 2.2kg-2.4kg /m2 |
