Crack-Resistance Anti-termite Construction New Material WPC wood plastic composite decking exterior Boards

  • Application:Outdoor,Villa, Garden ,Swimming Pool Decking. Garden Decking
  • function:Eco-friendly Weather Resistant,Weather Resistance Flame Retardan
  • key words:Composite Outdoor Decking
  • Material Component:30% HDPE+60% wood fiber + 10% additives
  • Description: Crack-Resistance Anti-termite Construction New Material WPC wood plastic composite decking exterior Boards
  • INQUIRY   EMAIL

1 Product Information

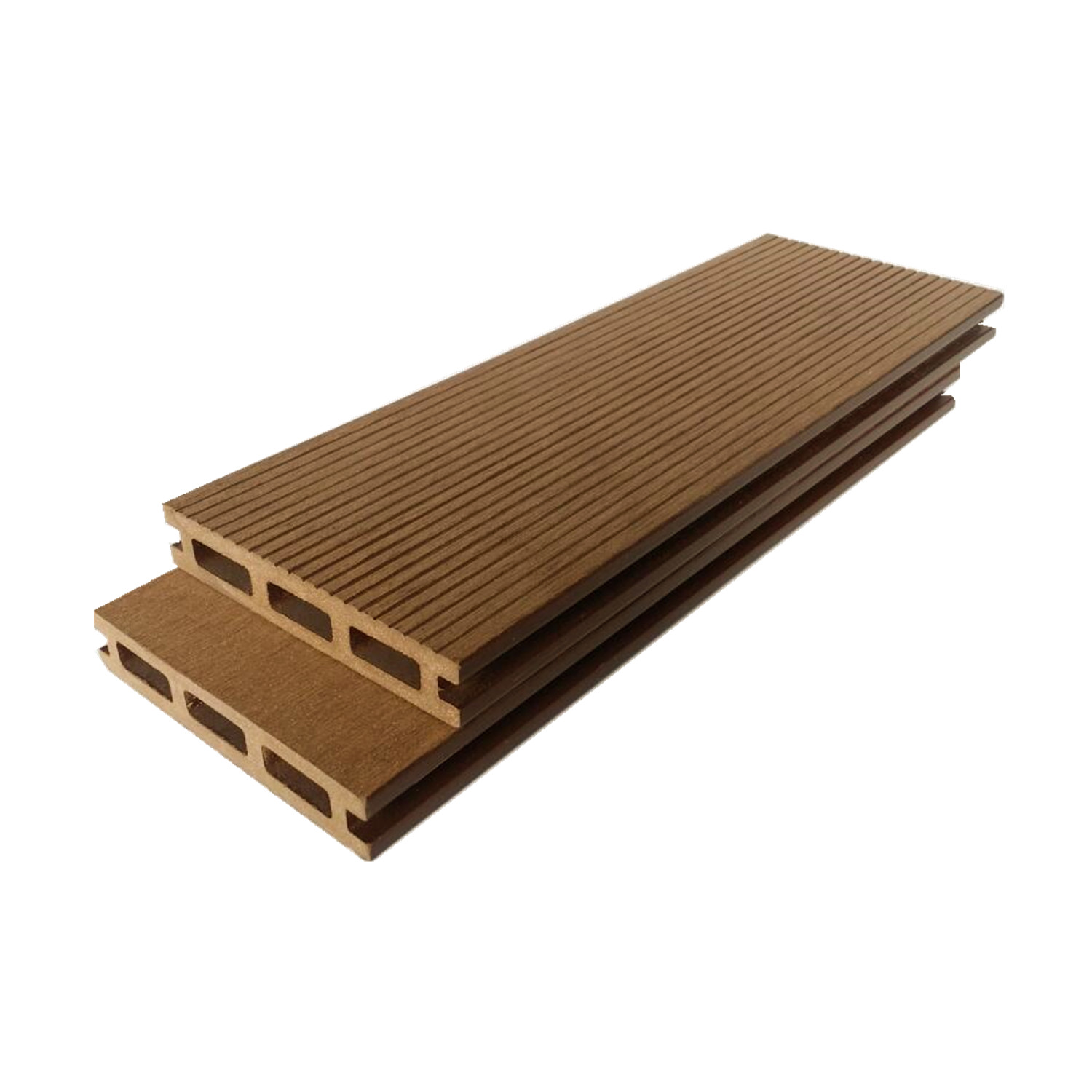

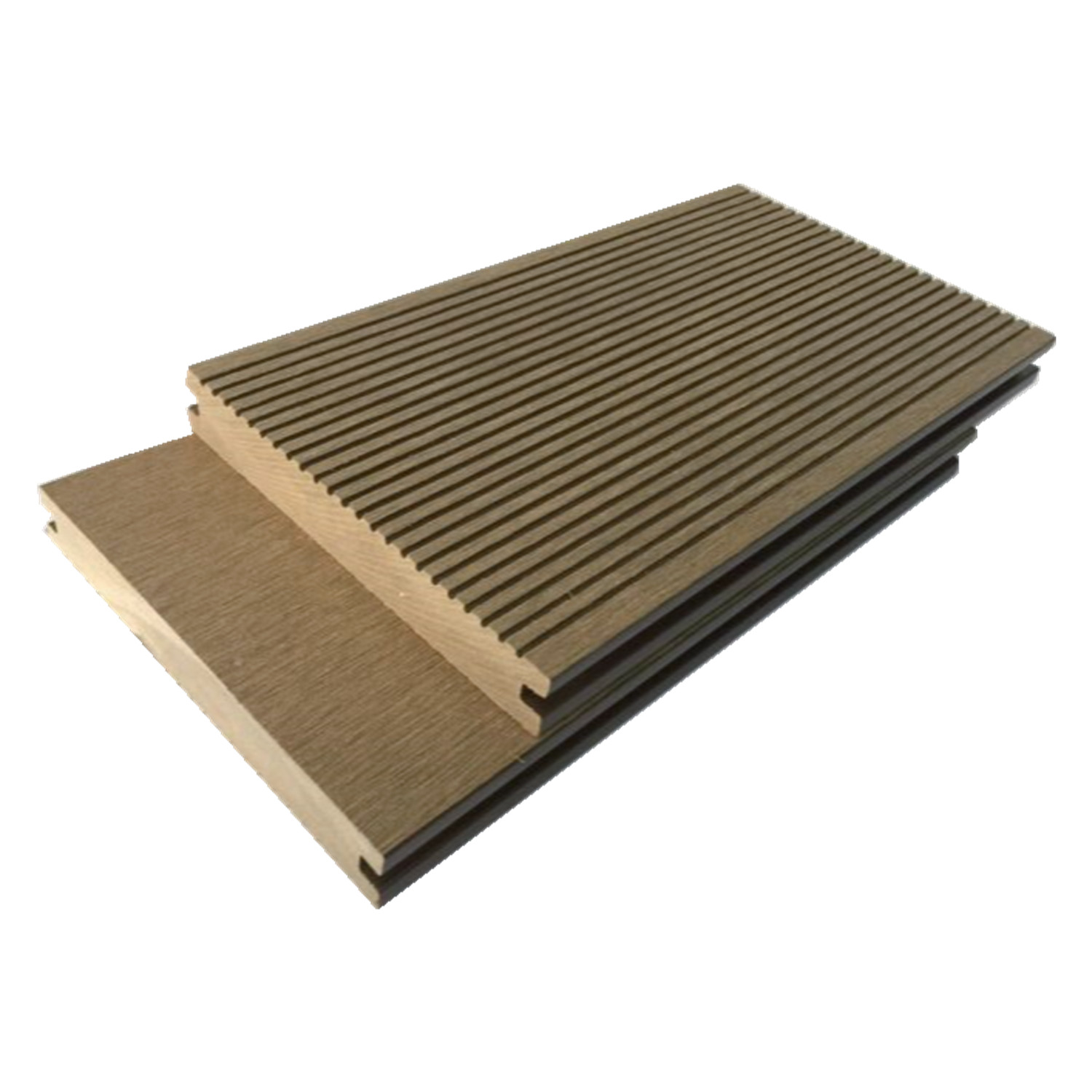

WPC flooring stands for Wood Plastic Composite. These 100% waterproof engineered luxury vinyl planks and tiles are DIY-friendly, featuring an effortless interlocking system that can be installed over most existing subfloors.

decking floor -3.jpg

This type of WPC profile with two sides groove designing for slip resistance, can be used as floor board, be installed on the outdoor ground, trestle road and garden path, and perform outstanding superiority in the outdoor decking of courtyard, park, garden community, waterscape, seashore path or gazebo, trestle and plank road, dock, etc

Material
60%-65% natural wood fiber
30%-35% of eco-friendly HDPE materials
5% -10% Chemical additivel
Size100x25mm , 135x25mm,138x24mm,140x20mm ,140x25mm ,146x22mm ,150x25mm,150x30mm,ect.
DesignHollow / Solid
TechnicExtruded
Length2.2m 3m/pc standard length,  also from your required
Surface treament Groove , Woodgrain, Flat, Embossing
Color available

Copper Brown, Light Brown, Black, Cedar, Coffee,Dark Grey,

Silver Grey, Yellow, Red and Wood,etc.

( we can adjust the new color according to the order requirement)
PackageCarton Pallet with PVC soft flim
Lifetime15+years

2 Application


installation reference -01.jpg


3.Colors


4 How to Install

WPC decking floor installation01_副本.jpg

WPC  installation.jpg

Installation :Wood plastic material in the current life is more and more used, become the best material to replace the anti-corrosion wood, so how should the wood plastic floor be installed?The main accessories for installing wood plastic decking include wood plastic keel or square steel keel, floor Clips(divided into plastic floor clip and stainless steel floor clip), screws, etc.

Preparation before Installation, Ensure that the concrete floor of the construction site is flat. This is very important.The wood-plastic keel is fixed directly on the ground with an expansion screw.,Space between plastic expansion screws  is 500mm~600mm.
Use electric drill lead a hole on the keel, the lead hole diameter should not be less than the diameter of the screw, and then put the screw into the drilled hole, the keel on the cement ground, the nail head should be all turned into the keel, do not expose, otherwise may lead to uneven floor layout.Here the installation of the keel is only as a reference, in fact some keels can be fixed by stainless steel fasteners.
The left and right sides of each wood plastic decking has grooves. When paving the first deck floor, cut one side grooves of the first floor, Then  lead holes on the surface of the floor, and fix it to the keel,or you can aslo use ss start clip to install the first WPC board.The second plate is then connected by plastic or metal fasteners, which clips are sandwiched between the two plates and hit into the keel by the screws.Attach the spacer clip to the other side of the WPC decking board then fix the spacer clip with a screw down to the keel.Then slip next WPC decking board firmly up to the spacer clip.Any piece in the middle should be supported over the keel or battens.

There are important measurements to keep in mind when installing composite decking, and those are the spacings. Composite decking boards are able to expand and contract with the weather, so it is important for you to take note of and act on the correct spacing allowances when installing your composite decking to avoid damage.

Due to the thermal expansion and cold contraction of the wood-plastic floor, a gap of about 5mm needs to be left at the connection between the two plates.

5.Installation Accessories


1. What's WPC?

WPC is short for Wood Plastic Composite. The combination of the raw materials are mostly 35% recycled plastic (HDPE) and 55% wood powder, plus 10% additives such as anti-UV agent, lubricant, light stabilizer and etc.

2. What's the process to make WPC decking tile?

(a) Mix raw materials according to certain formula, then make them into pellets.

(b) By extrusion machine and mold, shape the products in customized profile and size.

(c) Do surface treatment such as sanding or embossing, then cut the WPC decking by requested length.

(d) Assemble the decking boards with the plastic base with screws, then do cleaning before packing.

wpc 工艺流程.png

3. What's the benefits to use composite decking tile?

(a) Composite decking tile is waterproof, fire retardant, UV resistant, anti-slip, maintenance free and durable.

(b) Its designs, colors, surface treatments are adjustable.

(c) It's easy to install and cost efficient.

(d) Since the raw materials are recycled, the product itself is eco-friendly.
